Simply Supported UDL Beam Formulas and Equations
 Below are the Beam Formulas and their respective SFD's and BMD's
A simply supported beam is the most simple arrangement of the structure. The beam is supported at each end, and the load is distributed along its length. A simply supported beam cannot have any translational displacements at its support points, but no restriction is placed on rotations at the supports.
Fig:1 Formulas for Design of Simply Supported Beam having Uniformly Distributed Load are shown at the right
Fig:2 Shear Force & Bending Moment Diagram for Uniformly Distributed Load on Simply Supported Beam
Figure 2  Figure 1

Fig:3 Formulas for Design of Simply Supported Beam having Uniformly Distributed Load at its mid span

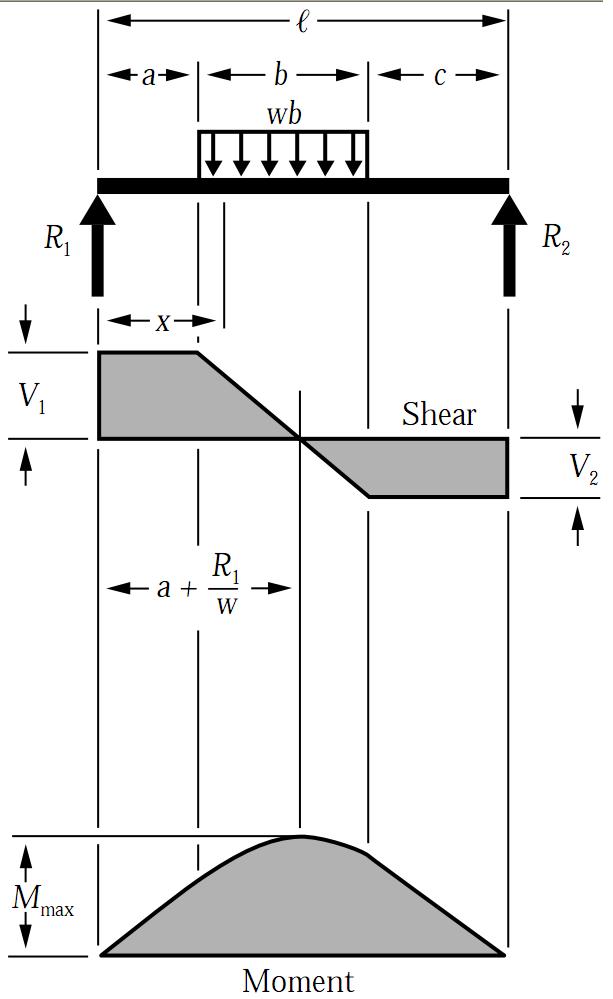

Fig:4 SFD and BMD for Simply Supported at midspan UDL carrying Beam
Figure 4  Figure 3

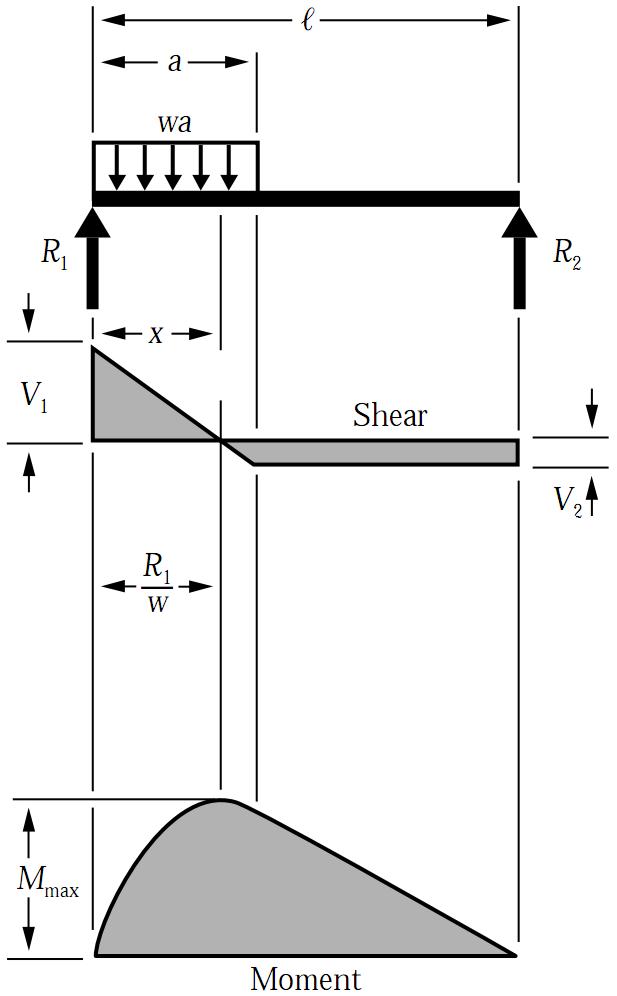

Fig:5 Shear Force and Bending Moment Diagram for Simply Supported Uniformly distributed Load at left support
Fig:6 Formulas for finding moments and reactions at different sections of a Simply Supported beam having UDL at right support
Figure 5  Figure 6

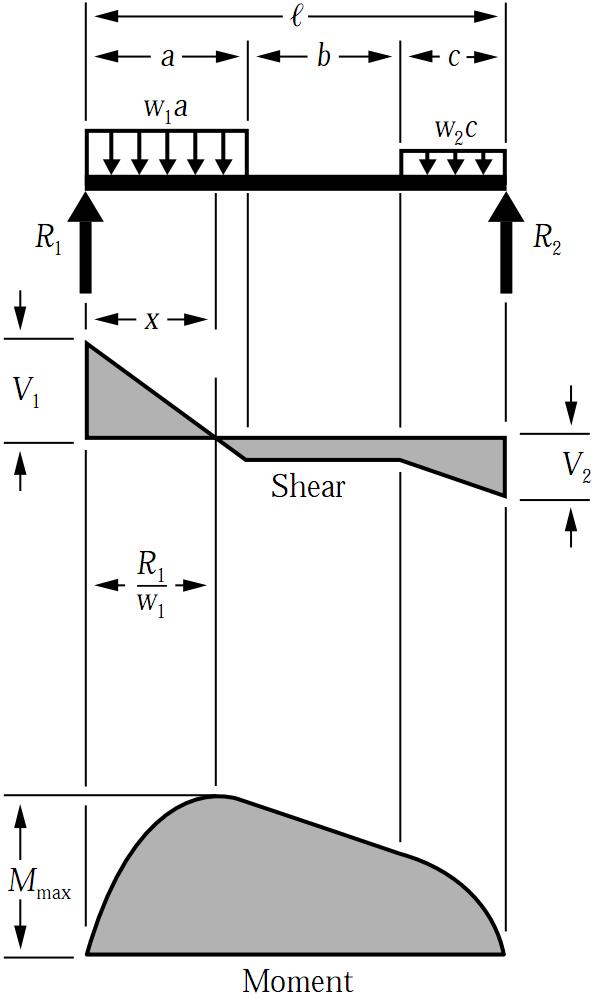

Fig:7 SFD and BMD for UDL at both ends
Fig:8 Formulas for analysis of beam having SFD and BMD at both ends
Figure 7  Figure 8
Fig:9 Collection of Formulas for analyzing a simply supported beam having Uniformly Varying Load along its whole length

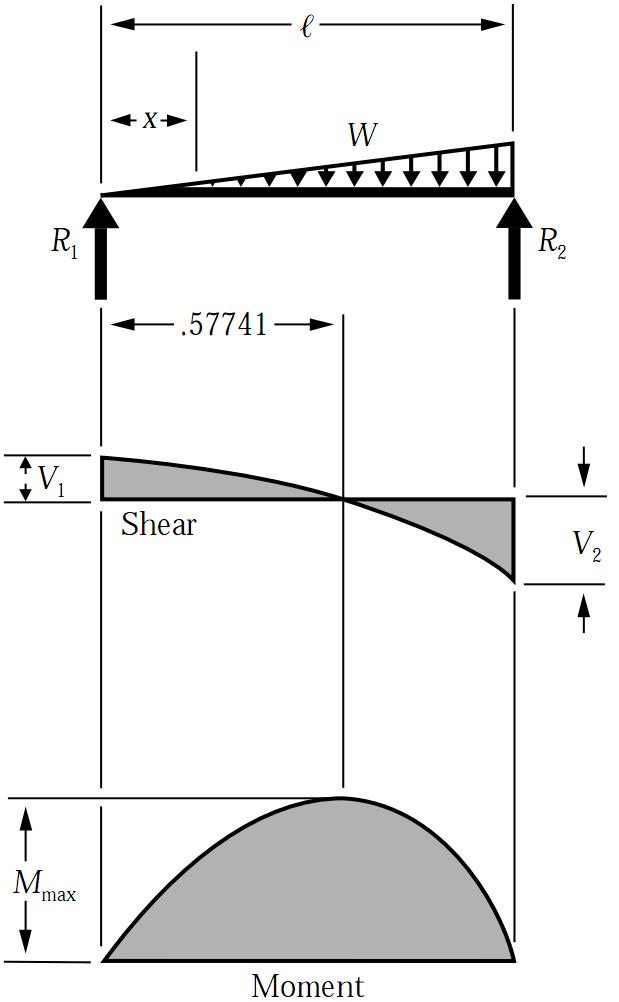

Fig:10 Shear force diagram and Bending Moment Diagram for simply supported Beam having UVL along its span
Figure 10  Figure 9

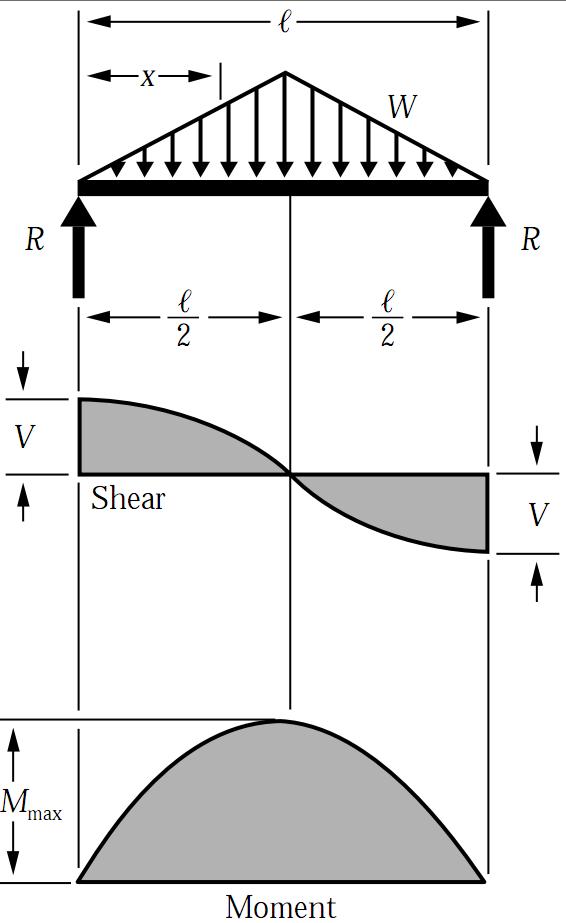

Fig:11 SFD and BMD for simply supported beam having UVL from the midspan to both ends
Fig:12 Formulas for calculating Moments and reactions on simply supported beam having UVL from the midspan to both ends
Figure 11  Figure 12
