Engineering Hydrology Class Lectures and Notes

By: Haseeb Jamal / On: Mar 13, 2017 / Notes, Types of, Processes



Contents

  1. What we study in hydrology?
  2. Scope of Hydrology
  3. Engineering Hydrology
    1. Uses of Engineering Hydrology
  4. Branches of Hydrology
  5. Hydrological Cycle
  6. Catchment & Basin, watershed & stream order
  7. Water Balance Components
  8. Precipitation
    1. Mechanism of Precipitation
    2. Types of Precipitation
    3. Measurement
  9. Hydrological Soil Groups

What we study in Hydrology

In hydrology we study Hydrologic cycle, its processes, water balance, precipitation types, estimation of precipitation, and analysis of precipitation data. We also study infiltration phenomena, solution of the Richard’s equation and approximate infiltration models. Methods of measurement of stream flow, stage discharge relation, unit hydro graph theory, Transposition of Hydrograph, Synthesis of hydrograph from basin characteristics, stream flow routing, flood frequency analysis and attenuation of flood flows are also studied in Hydrology.

Definition of hydrology:

The study of water in all its forms (rain, snow and water on the earth’s surface), and from its origins to all its destinations on the earth is called hydrology.

Scope of Hydrology

  1. Water is one the most valuable natural resources essential for human and animal life, industry and agriculture.
  2. It is also used for Power generation, navigation and fisheries.
  3. Tremendous importance is given to the hydrology all over the world in the development and management of water resources for irrigation, water supply, flood control, water-logging and salinity control, Hydro power and navigation.

Engineering Hydrology

It uses hydrologic principles in the solution of engineering problems arising from human exploitation of water resources of the earth. The engineering hydrologist, or water resources engineer, is involved in the planning, analysis, design, construction and operation of projects for the control, utilization and management of water resources. Hydro logic calculations are estimates because mostly the empirical and approximate methods are used to describe various hydrological processes.

Uses of Engineering Hydrology

Engineering Hydrology Helps in the following ways:

  1. Hydrology is used to find out maximum probable flood at proposed sites e.g.. Dams.
  2. The variation of water production from catchments can be calculated and described by hydrology.
  3. Engineering hydrology enables us to find out the relationship between a catchment’s surface water and groundwater resources
  4. The expected flood flows over a spillway, at a highway Culvert, or in an urban storm drainage system can be known by this very subject.
  5. It helps us to know the required reservoir capacity to assure adequate water for irrigation or municipal water supply in droughts condition.
  6. It tells us what hydro-logic hardware (e.g.. rain gages, stream gauges etc) and software (computer models) are needed for real-time flood forecasting

Branches of Hydrology

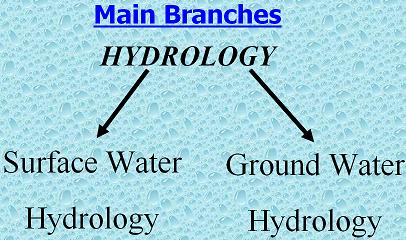

Branches of Hydrology

Hydrological cycle

  1. The hydrologic cycle describes the continuous re-circulating transport of the waters of the earth, linking atmosphere, land and oceans.
  2. Water evaporates from the ocean surface, driven by energy from the Sun, and joins the atmosphere, moving inland as clouds. Once inland, atmospheric conditions act to condense and precipitate water onto the land surface, where, driven by gravitational forces, it returns to the ocean through river and streams.
  3. The process is quite complex, containing many sub-cycles.
  4. Engineering Hydrology takes a quantitative view of the hydrologic cycle.
  5. The quantification of the hydrologic cycle which is an open system can be represented by a mass balance equation, where inputs minus outputs are equal to the change in storage.
  6. It is a basic Hydro-logic Principle or equation that may be applied either on global or regional scale

I - O = ΔS

The water holding elements of the hydrological cycle are:

  1. Atmosphere
  2. Vegetation
  3. Snow packs
  4. Land surface
  5. Soil
  6. Streams, lakes and rivers
  7. Aquifers
  8. Oceans

Hydrological Processes

  1. Precipitation
  2. Evaporation
  3. Transpiration
  4. Infiltration
  5. Overland flow
  6. Surface Runoff
  7. Groundwater outflow

Water Balance Components

Inflow:

  1. Precipitation
  2. Import defined as water channeled into a given area.
  3. Groundwater inflow from adjoining areas.

Outflow:

  1. Surface runoff outflow
  2. Export defined as water channeled out of the same area.
  3. Evaporation
  4. Transpiration

Change in Storage:

This occurs as change in:

  1. Groundwater
  2. Soil moisture
  3. Surface reservoir water and depression storage
  4. Detention Storage

The Hydrological Proces

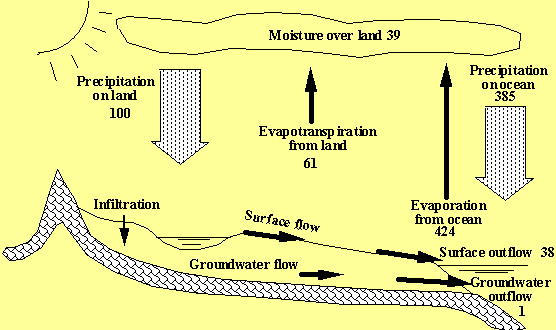

Global Water Balance

In the atmosphere:

Precipitation (P) = Evapo-transpiration (ET)
100+385 = 61+424

On land:

P = Evapo-transpiration (ET) + Surface runoff (R) + Groundwater outflow
100 = 61 + 38 + 1

Over oceans and seas:

Ocean precipitation + Surface runoff + Groundwater outflow = Evaporation (E)
385 + 38 + 1 = 424

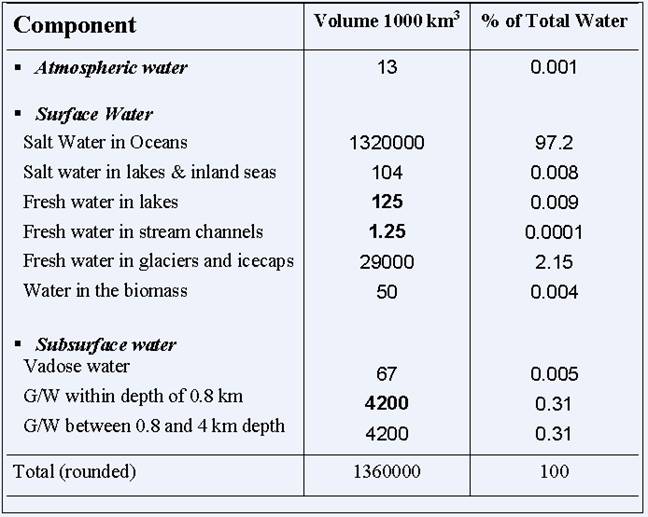

Estimated Distribution of World's Water

Hydrological Systems

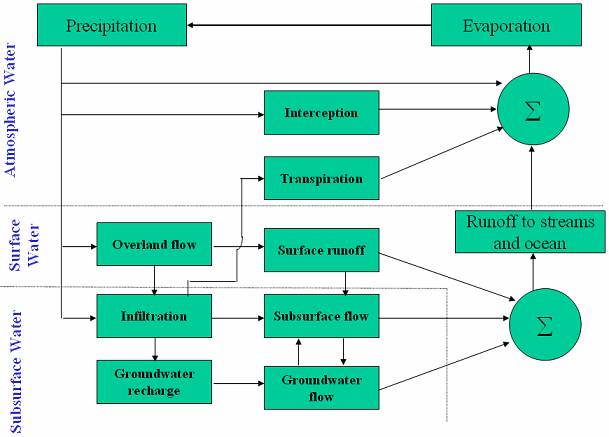

Block-diagram representation of the global hydrologic system

Catchment and Basin

  1. A Catchment is a portion of the earth’s surface that collects runoff and concentrates it at its furthest downstream point, referred to as the catchment outlet.
  2. The runoff concentrated by a catchment flows either into a larger catchment or into the ocean.
  3. The place where a stream enters a larger stream or body of water is referred to as the mouth.
  4. The terms watershed and basin are commonly used to refer to catchments. Generally, watershed is used to describe a small catchment (stream watershed), whereas basin is reserved for large catchments (river basins).

Watershed and Stream order

  1. The watershed or basin is defined by the surrounding topography, the perimeter of which is called a divide. It is the highest elevation surrounding the watershed. All of the water that falls on the inside of the divided has the potential to be shed into the streams of the basin encompassed by the divide. Water falling outside of the divide is shed to another basin.
  2. The water flowing in streams is called stream flow

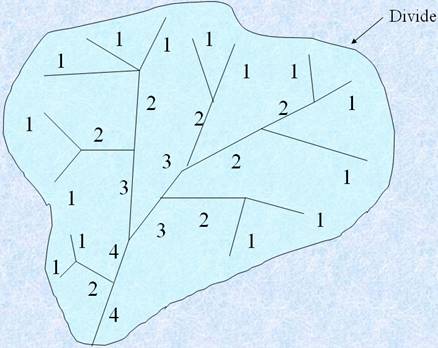

Horton suggested a classification of stream order as a measure of the amount of branching within a basin. A first order stream is a small, un-branched tributary. A second order stream has only first order tributaries. A third order stream has only first and second order tributaries and so on. When a channel of lower order joins a channel of higher order, the channel downstream retains the higher of the two orders.

Water Balance Problem

Water Balance Problem

In a given year, a catchment with an area of 2500 km2 received 1.3 m of precipitation. The average rate of flow measured in a river draining the catchment was 30 m3s-1.

  1. How much total river runoff occurred in the year (in m3)?
  2. What is the runoff coefficient?
  3. How much water is lost due to the combined effects of evaporation, transpiration, and infiltration? (Expressed in m).

Solution

Total runoff volume

= number of seconds in a year ´ average flow rate
= 31 536 000 ´ 30
= 9.4608´108 m3

Runoff coefficient

= Runoff volume/ precipitation volume
= (9.4608´108) / (1.3 ´ 2500 ´ 106)
= 0.29 (29 %)
The water balance equation can be arranged to produce:
ET+F= P - R - ΔS

Where: P = (1.3 ´ 2500´106)
= 3.25´109 m3
R = 9.4608´108 m3 (from Total runoff volume)
ΔS = 0 (i.e. no change in storage)

So,
ET + F = 3.25´109 - 9.4608´108
= 2.30392´109 m3
= (2.30392´109) / (2500´106)
= 0.92 m

Precipitation

What is Precipitation? Defined:

Water falling in solid or liquid form e.g.. rain, snow, and hail.

Uses of Precipitation Data

  • Runoff estimation analysis
  • Groundwater recharge analysis
  • Water balance studies of catchments
  • Flood analysis for design of hydraulic structures
  • Real-time flood forecasting
  • low flow studies

Mechanism Producing Precipitation

Three mechanisms are needed for formation of precipitation.
1. Lifting and Cooling - Lifting of air mass to higher altitudes causes cooling of air.
2. Condensation - conversion of water vapor into liquid droplets.
3. Droplet Formation - Growth of droplets is required if the liquid water present in a cloud is to reach ground against the lifting mechanism of air.

Types of Precipitation

Depending upon the way in which the air is lifted and cooled so as to cause precipitation, we have three types of precipitation, as given below:

    • Cyclonic Precipitation
    • Convective Precipitation
    • Orographic Precipitation

Cyclonic Precipitation:

Cyclonic precipitation is caused by lifting of an air mass due to the pressure difference. Cyclonic precipitation may be either frontal or non-frontal cyclonic precipitation.

Frontal precipitation:

It results from the lifting of warm and moist air on one side of a frontal surface over colder, denser air on the other side. A front may be warm front or cold front depending upon whether there is active or passive accent of warm air mass over cold air mass.

Non-frontal precipitation:

If low pressure occurs in an area (called cyclone), air will flow horizontally from the surrounding area (high pressure), causing the air in the low-pressure area to lift. When the lifted warm-air cools down at higher attitude, non-frontal cyclonic precipitation will occur.

prcp1

In the case of a cold front, a colder, denser air mass lifts the warm, moist air ahead of it. As the air rises, it cools and its moisture condenses to produce clouds and precipitation. Due to the steep slope of a cold front, forceful rising motion is often produced, leading to the development of showers and occasionally severe thunderstorms.

prcp1

In the case of a warm front, the warm, less dense air rises up and over the colder air ahead of the front. Again, the air cools as it rises and its moisture condenses to produce clouds and precipitation. Warm fronts have a gentler slope and generally move more slowly than cold fronts, so the rising motion along warm fronts is much more gradual. Precipitation that develops in advance of a surface warm front is typically steady and more widespread than precipitation associated with a cold front. Warm front precipitation is generally light to moderate.

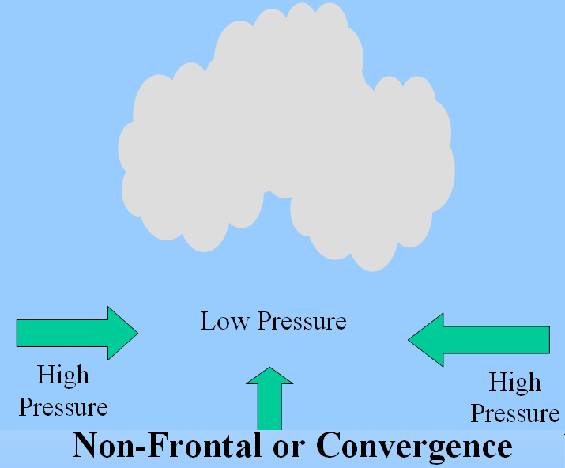

Non-frontal precipitation or Convergence

Convective Precipitation

Convective precipitation is caused by natural rising of warmer, lighter air in colder, denser surroundings. Generally, this kind of precipitation occurs in tropics, where on a hot day, the ground surface gets heated unequally, causing the warmer air to lift up as the colder air comes to take its place. The vertical air currents develop tremendous velocities. Convective precipitation occurs in the form of showers of high intensity and short duration.

Orographic Precipitation

Orographic precipitation is caused by air masses which strike some natural topographic barriers like mountains, and cannot move forward and hence rise up, causing condensation and precipitation. All the precipitation we have in Himalayan region is because of this nature. It is rich in moisture because of their long travel over oceans.

Definitions of some useful Technical terms

Depth: depth of rainfall at a point or over an area (mm)

Duration: the period of time during which rain fell (hours)

Intensity: Depth of rainfall per unit time i.e.. depth/duration (mm/hr)

Time distribution: Rainfall hyetographs are plots of rainfall depth or intensity as a function of time. Cumulative rainfall hyetographs are also called rainfall mass curve.

Isohyets (contours of constant rainfall) can be drawn to develop isohyetal maps of rainfall depth.

Normal Annual Precipitation (mean of 30 years annual ppt)

Measurement of Precipitation

Point Data-Gauges

Non-recording rain gauges

They are known as non-recording because they do not record the rain but collect the rain.

Recording rain guages

These are used to determine rates of rainfall over periods of time. Three types in common use are:

  1. Weighing Type
  2. Tipping Bucket Type
  3. 3. Float Type
