Crop Water Requirement in Irrigation and Evaluation of Water Losses

Water Requirement of Crops



Crop Water RequirementSee Also: Factors affecting Crop Water Requirement

It is defined as, "The quantity of water required by a crop in a given period of time for normal growth under field conditions." It includes evaporation and other unavoidable wastes. Usually water requirement for crop is expressed in water depth per unit area.

IRRIGATION WATER NEED = Crop water need — available rain fall

The first thing you need to consider when planning your garden is what growing zone you live in. This is based on both the temperature range of your climate and the amount of precipitation. Take a close look at the area in which you are going to plant your garden. If the ground tends to be very moist, choose plants that can tolerate constantly wet soil, and even standing water.

If you live in an area that suffers from frequent droughts, however, select plants that can tolerate going long periods without water, especially in light of the frequent watering restrictions imposed on such areas. If you are lucky enough to live in an area that has a balanced climate, you have a wider range of choices for your plants.

Low Water Requirement Plants

Water Requirements of CropsPlants that require low levels of water are often called drought tolerant. Drought-tolerant plants can thrive in hot, dry conditions with very little water. They include both perennials and annuals. Most drought-tolerant plants only have to be hand-watered when they are planted and while they are establishing themselves. After that, they can be left to the natural cycle of the elements. Popular drought tolerant trees include the red cedar. live oak, crape myrtle, and the windmill and saw palmetto palm trees. All citrus trees are also drought tolerant. Many homeowners in areas prone to drought, such as parts of the southern United States, use shrubs and ground covering vines as part of their landscaping. These include Texas sage, orange jasmine and Chinese fountain grass. There are not many perennial drought-tolerant plants, but amaryllis is one that is very popular, along with the African iris. Popular drought-tolerant annuals include marigold, cosmos and the Dahlberg daisy.

Mid-Level Water Requirement Crops

Most plants land in this range when it comes to water requirements. These plants do not need to be watered every day, but they need to be watered when the soil has been dry for over a week or two. Sometimes these plants are classified as plants lying in the "occasional water zone". These include popular plants such as geraniums, most roses, wisteria, clematis and other vine plants, sunflowers, spring flowering bulbs, and most flowering perennial shrubs. Note that flowering annuals planted in containers will need watering at least once or twice a week, while annuals planted in the ground will need watering less often.

High Water Requirement Plants

Some plants require large amounts of water. These plants typically grow in marshy areas or bogs, or along the banks of rivers, streams and lakes. The soil for these plants should always be kept moist. Standing water is not a concern for these plants, so you don't have to worry about root rot. Perennials are especially good for wet areas because they don't have to be replanted year after year, which can be difficult in marshy areas. Popular perennials for wet soil include iris plants, cannas, bee balms, ferns, and bog salvia. Aquatic mint is a pleasant ground cover that likes wet soil. The red osier dogwood does very well in wet conditions. Most annual flowering plants also do well in constantly moist soil.

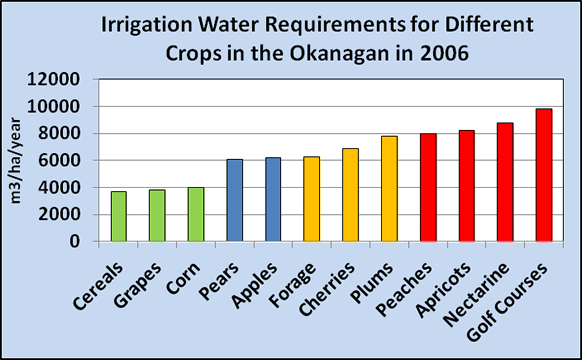

Water Requirement of Different Crops

Video on Good PaintsSee Also: Water Budget of Pakistan

Amount of water required by a crop in its whole production period is called water requirement. The amount of water taken by crops vary considerably. What crops use more water and which ones less.......

  Crop Water Requirement (mm)
Rice 900-2500
Wheat 450-650
Sorghum 450-650
Maize 500-800
Sugarcane 1500-2500
Groundnut 500-700
Cotton 700-1300
Soybean 450-700
Tobacco 400-600
Tomato 600-800
Potato 500-700
Onion 350-550
Chillies 500
Sunflower 350-500
Castor 500
Bean 300-500
Cabbage 380-500
Pea 350-500
Banana 1200-2200
Citrus 900-1200
Pineapple 700-1000
Gingelly 350-400
Ragi 400-450
Grape 500-1200

Irrigation Crop Water Requirement

This case study shows how to calculate the total water requirement for a command area (irrigation blocks) under various crops, soil textures and conveyance loss conditions. In order to evaluate the required irrigation gift for the entire command area a simple water balance has to be set-up. The total water demand for each irrigation block and the crops in each block are calculated by summing the following components:

  • infiltration (percolation loss) through the soil (I)
  • seepage (conveyance loss) through the channel (S)
  • maximum evapo-transpiration of the crop (ETm)

In this exercise, the irrigation water requirement is calculated for a 10-day period during the harvest stage.

Evaluation of Percolation loss (I)

The command area is divided in irrigation blocks. First, these irrigation blocks are crossed with the soil texture map to determine the area of each soil texture class in each block. Percolation losses differ per soil texture class so a table with the following percolation data is created:

Texture Percolation loss (mm/day)
Clay 4
Loam 12
Sandy clay 14
Clay loam 7

The percolation table is joined with the cross table to get the percolation for each soil texture class in each block. The amount of water loss for each soil texture class per block is calculated with a tabcalc statement. In order to get the total percolation loss per block the results of the previous operation are aggregated.

Evaluation of Conveyance loss (S)

Conveyance losses are calculated in about the same way as the percolation losses. First, the map with the irrigation blocks is crossed with the channel distribution map. The conveyance loss per meter channel length differs per channel type and is 0.2 m³ per day for clay channels and 0.01 m³ per day for concrete channels. A new table indicating water loss per channel type is created and joined to the cross table. The amount of water loss for each type of channel per block is calculated with a simple tabcalc formula. Finally the results are aggregated to evaluate the total conveyance loss per irrigation block.

Evaluation of maximum evapo-transpiration (ETm)

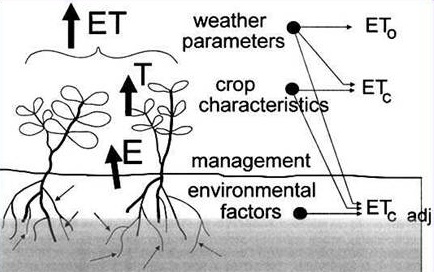

Crop water requirements are normally expressed by the rate of evapotranspiration (ET). The evaporative demand can be expressed as the reference crop evapotranspiration (ETo) which predicts the effect of climate on the level of crop evapotranspiration. In this case study the ETo is 8 mm/day. Empirically-determined crop coefficients (kc) can be used to relate ETo to maximum crop evapotranspiration (ETm) when water supply fully meets the water requirement of the crop. The value of kc varies with crop and development stage. The kc values for each crop and development stage are available in a table.

For a given climate, crop and crop development stage, the maximum evapotranspiration (ETm) in mm/day of the period considered is:

ETm = kc * ETo

Maximum evapo-transpiration refers to conditions when water is adequate for unrestricted growth and development under optimum agronomic and irrigation management. Maximum evapotranspiration is calculated in this case study by crossing the irrigation block map with the map that shows the different crop types in the command area, joining the cross table with the kc table and by applying the maximum evapotranspiration formula with a tabcalc statement.

Water balance calculation (S+I+ETm)

The required irrigation gift for the entire command area is equal to the sum of water losses due to infiltration through the soil (I), seepage through the channel (S) and maximum evapotranspiration (ETm) for each block. The total amount of water requirement in harvest period for each block is reclassified in irrigation classes using the following table:

Upper boundary Irrigation class
4000 1
6000 2
8000 3
10000 4
12000 5
14000 6

Finally, you will create a script to automate the calculation procedure. With the script, you can easily calculate the water requirements for other growing stages.
