Methods & Techniques of Irrigation

Merits & Demerits of Irrigation | Irrigation Types with Neat Sketches | Irrigation Questions/Answers

Advertisements

There are three broad classes of irrigation systems:

  1. Pressurized distribution
  2. Gravity flow distribution
  3. Drainage flow distribution

1. Pressurized Distribution

The pressurized systems include sprinkler, trickle, and the array of similar systems in which water is conveyed to and distributed over the farmland through pressurized pipe networks. There are many individual system configurations identified by unique features (centre-pivot sprinkler systems).

2. Gravity Flow Irrigation System

Gravity flow systems convey and distribute water at the field level by a free surface, overland flow regime. These surface irrigation methods are also subdivided according to configuration and operational characteristics.

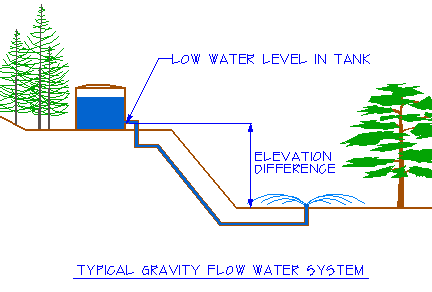

Gravity Flow Irrigation System

3. Control of drainage flow irrigation System

Irrigation by control of the drainage system, subirrigation, is not common but is interesting conceptually. Relatively large volumes of applied irrigation water percolate through the root zone and become a drainage or groundwater flow. By controlling the flow at critical points, it is possible to raise the level of the groundwater to within reach of the crop roots. These individual irrigation systems have a variety of advantages and particular applications.

Irrigation systems are often designed to maximize efficiencies and minimize labour and capital requirements. The most effective management practices are dependent on the type of irrigation system and its design. For example, management can be influenced by the use of automation, the control of or the capture and reuse of runoff, field soil and topographical variations and the existence and location of flow measurement and water control structures.

Questions that are common to all irrigation systems are when to irrigate, how much to apply, and can the efficiency be improved. A large number of considerations must be taken into account in the selection of an irrigation system. These will vary from location to location, crop to crop, year to year, and farmer to farmer.

Compatibility of the irrigation systems:

The irrigation system for a field or a farm must be compatible with the other existing farm operations, such as land preparation, cultivation, and harvest.

  • Level of Mechanization
  • Size of Fields
  • Cultivation
  • Pest Control
  • Topographic Limitations.

Restrictions on irrigation system selection due to topography include:

  1. groundwater levels
  2. the location and relative elevation of the water source,
  3. field boundaries,
  4. acreage in each field,
  5. the location of roads
  6. power and water lines and other obstructions,
  7. the shape and slope of the field

Methods of Irrigation

Merits & Demerits of Irrigation | Irrigation Types with Neat Sketches | Irrigation Questions/Answers

Under gravity irrigation, water is distributed by means of open canals and conducts with out pressure. Gravity irrigation methods are less expensive, but requires more skill and experience to achieve rescannable efficiency. This method also requires that the land to be irrigated should have a flatter slope, other wise the cost of land leveling and preparation at times be come very high. Gravity irrigation method. Includes furrow, boarder, basin, wild- flooding and corrugation.

1. Furrow irrigation

In this method of surface irrigation, water is applied to the field by furrow which are small canales having a continuous our nearly uniform slope in the direction of irrigation. Water flowing in the furrow into the soil spreads laterally to irrigate the area between furrows.

The rate of lateral spread of water in the soil depends on soil type.i.e. For a given time, water will infiltrate more vertically and less laterally in relatively sandy soils than in clay soil.

Where the land grade is less than 1% in the direction of furrow, striate graded furrows may be adapted. The grade can be as much as 2 to 3% depending on the soil type and the rainfall intensity, which affects erosion. When field sloped is too steep to align the furrows down the slope, control furrows which run along curved routed may be used. Spacing of furrows depends on the crop type and the type of machinery used for cultivation and planting.

Length of furrows depends largely on permeability of the soil, the available labor and skill, and experiences of the irrigation.

Flow rates are related to the infiltration to the rate of the soil.

Longitudinal slope of furrow depends up on the soil type, especially its errodiability and the velocity of flow. slope may be related to discharge as follows.

slope % 0.25 0.5 0.75 1.0 1.5 2.0

Qmax (m3/hr) 9.0 4.5 3.0 2.2 1.5 1.1

Furrow Irrigation System

2. Boarder - strip Irrigation

The farms are divided into number of strips of 5 to 20 meters wide and 100 to 400 meters long. Parallel earth bunds or levees are provided in order to guide the advancing sheet of water.

Recommended safe limits of longitudinal slope also depends on the soil texture:

Sandy loam to sandy soils 0.25 - 0.6%

Medium loam soils 0.2 - 0.4%

Clay to clay loam soils 0.05 - 0.2%

3. Basin irrigation

Large stream of water is applied to almost level and smaller unit of fields which are surrounded by levees or bunds. The applied water is retained in the basin until it filtrates.

Soil type, stream size and irrigation depth are the important factors indeterming the basin area.

Method of irrigation Type of Crop suited
Border strip method Wheat, Leafy vegetables, Fodders
Furrow method Cotton, Sugarcane, Potatoes
Basin method Orchard trees

4. Wild flooding

Water is applied all over the field especially, before plowing for soil that can't be plowed when dry.

Under closed conduit- there are two types of irrigation

  1. Sprinkler
  2. Drip irrigation

1. Sprinkler irrigation:

It is mostly used for young growth, to humid the atmosphere, for soil compaction( specially for sandy loam soils before planting, for land having up and down slope and used to wash out plant leaves especially in dusty area.

Sprinkler irrigation offers a means of irrigating areas which are so irregular that they prevent use of any surface irrigation methods. By using a low supply rate, deep percolation or surface runoff and erosion can be minimized. Offsetting these advantages is the relatively high cost of the sprinkling equipment and the permanent installations necessary to supply water to the sprinkler lines.

Very low delivery rates may also result in fairly high evaporation from the spray and the wetted vegetation. It is impossible to get completely uniform distribution of water around a sprinkler head and spacing of the heads must be planned to overlap spray areas so that distribution is essentially uniform

Advantages
    • Economical to labour & uniform distribution.

2. Drip irrigation

This is used especially where there is shortage of water and salt problem. The drip method of irrigation, also called trickle irrigation. The method is one of the most recent developments in irrigation. It involves slow and frequent application of water to the plant root zone and enables the application of water and fertilizer at optimum rates to the root system.

It minimizes the loss of water by deep percolation below the root zone or by evaporation from the soil surface. Drip irrigation is not only economical in water use but also gives higher yields with poor quality water.

Advantages
  • No loss. of water because all water drops at root zone.
  • No water logging and rise of water table at result salinity problems caused by this irrigation type is almost nil.
  • Uniform distribution of water.
  • Good water management.
  • Economical use of lobour.
